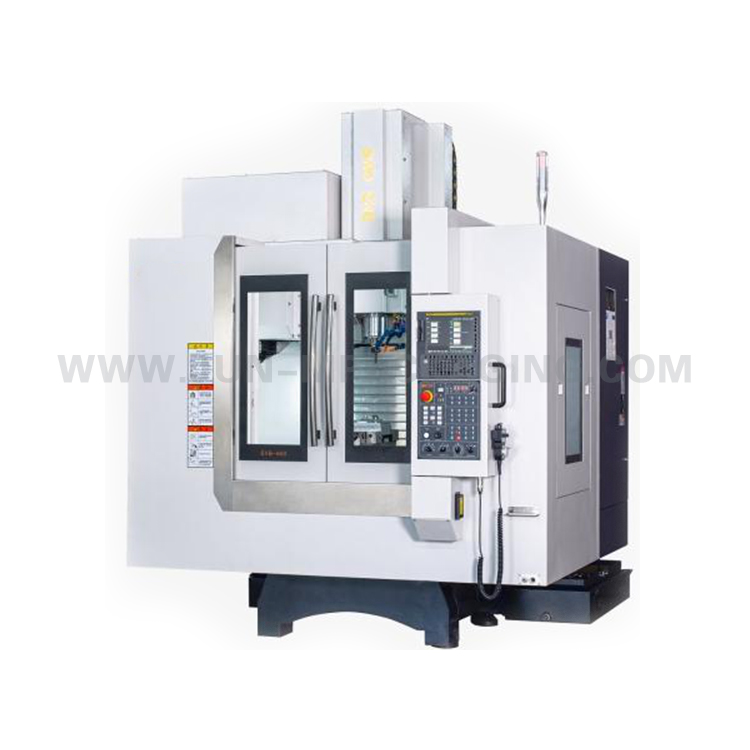

Vertical Machining Center

1) The main parts of the machine such as the bed, column, saddle, worktable and headstock are all made of high-quality gray cast iron with high seismic performance.

Special process treatment improves the mechanical properties of the material. Castings are aged twice to eliminate residual stress inside the material, the machine is used for heavy or intermediate

Excellent rigidity and excellent shock absorption during intermittent cutting; good thermal stability and long-lasting precision stability. Machine tool design, X/Y/Z

The shaft adopts a linear guideway structure, and the three-way linear guideway adopts a heavy preloading process, so that the machine tool not only takes into account the characteristics of high speed and high precision, but also has the characteristics of heavy cutting and extreme pressure.

Features such as best rigidity and excellent production efficiency.

2) Both the guide rail and the ball screw pair adopt a central centralized automatic thin oil lubrication system.

All lubricating parts are filled with oil to ensure uniform lubrication of each sliding surface, effectively reducing frictional resistance, improving motion accuracy, and ensuring ball screw

Service life of lever pairs, bearings and guides.

3) The installation and support parts (motor seat and bearing seat) of the three-axis feed system of the machine tool are completely guaranteed by machining, which greatly improves the assembly efficiency and

Assembly quality and precision retention are greatly improved.

4) The spindle is equipped with an air curtain protection device as standard, which effectively avoids the infiltration of cutting fluid and dust.

5) The position of the cooling nozzle of the machine tool spindle has been optimized and placed on the left and right sides of the spindle, which solves the residual cutting of the original machine tool.

The problem of fluid contaminating the tool holder during tool change.

6) Each axis guide rail adopts imported brand heavy-duty linear guide rail, which has high bearing capacity and stable precision.

7) The machine is equipped with a disc-type manipulator tool magazine as standard, which is installed on the column.

After the spindle reaches the tool change position, the tool changer of the manipulator completes the return and feeding of the tool. ATC is a gear hobbing cam mechanism, which can be

It runs at high speed enough to make the tool change process fast and accurate.

8) The machine tool adopts a full protective cover that meets safety standards, which not only prevents the splash of coolant, but also ensures safe operation and pleasant appearance. machine tool

Each guide rail has a protective cover to prevent chips and coolant from entering the inside of the machine tool, reducing the wear and corrosion of the guide rail and ball screw, and prolonging the machine tool

service life.
