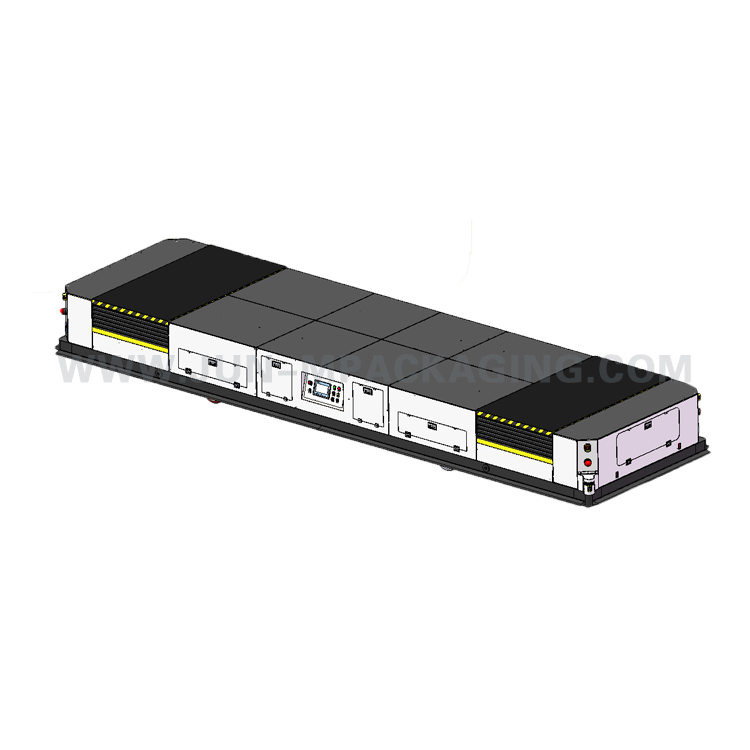

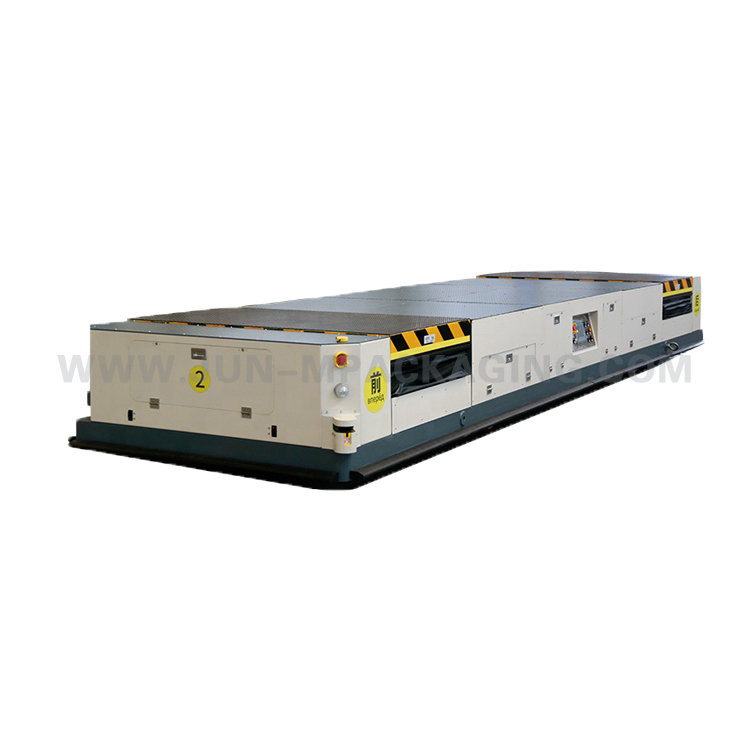

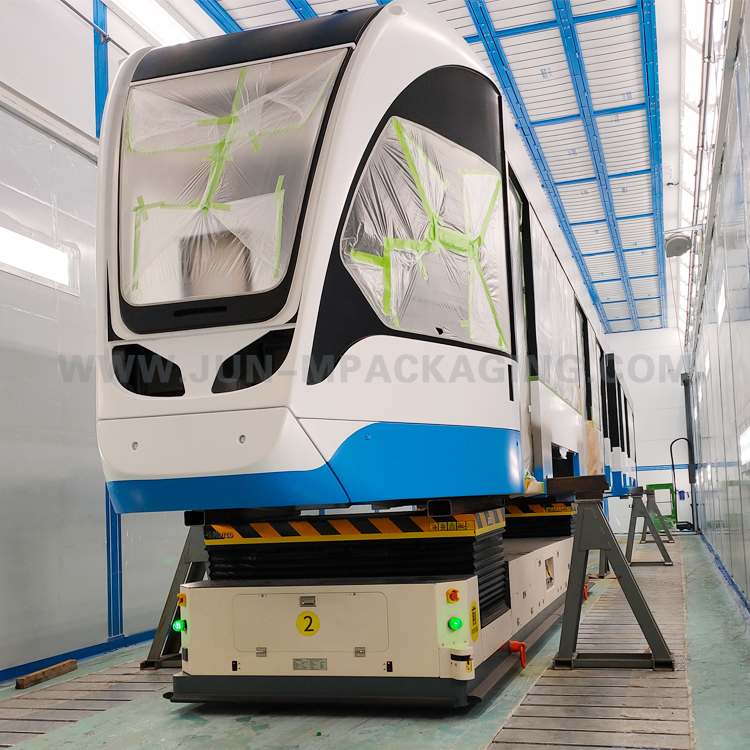

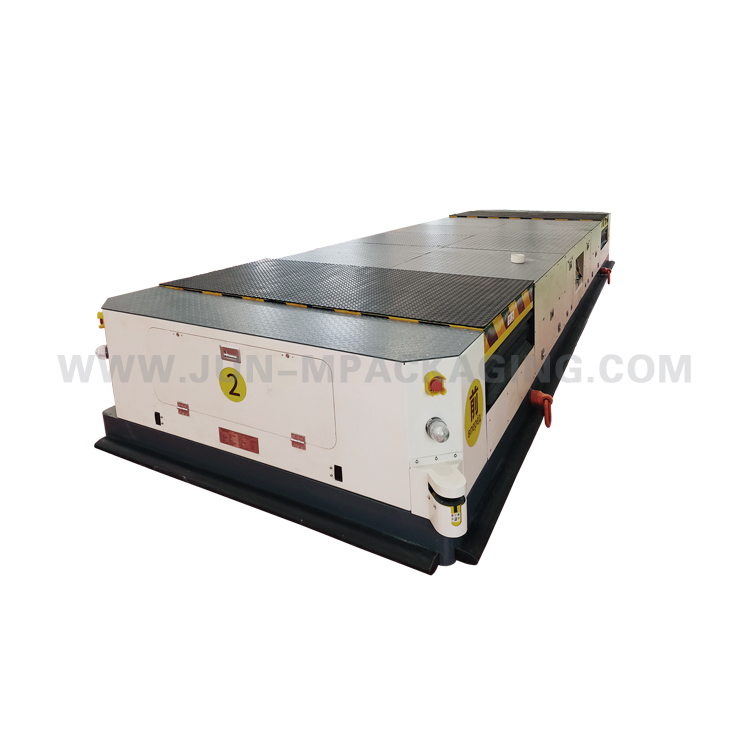

Heavy-duty omni-directional piggyback lift AGV adopts a load-bearing body structure with a lifting mechanism and hydraulic shock absorption, which can lift the material to a set height and transport it to the supporting tooling, and requires a small running space in a small space. The environment can complete the docking work that can not be completed by ordinary AGV. It can be rotated 90° on the spot and 360 degree rotation function. The climbing height can reach 4°, which can meet different angle operation requirements on site, and effectively utilize the site. space. It is especially suitable for large workpieces, mechanical assembly and material handling of heavy work pieces. It can be used for bicycles or double-vehicle linkage to realize the transportation of super-large workpieces. This product has been applied to the railway transportation project of the Russian Federation.
Product introduction：
Heavy-duty omni-directional piggyback lift AGV adopts a load-bearing body structure with a lifting mechanism and hydraulic shock absorption, which can lift the material to a set height and transport it to the supporting tooling, and requires a small running space in a small space. The environment can complete the docking work that can not be completed by ordinary AGV. It can be rotated 90° on the spot and 360 degree rotation function. The climbing height can reach 4°, which can meet different angle operation requirements on site, and effectively utilize the site. space. It is especially suitable for large workpieces, mechanical assembly and material handling of heavy work pieces. It can be used for bicycles or double-vehicle linkage to realize the transportation of super-large workpieces. This product has been applied to the railway transportation project of the Russian Federation.
Features：
1. Large load, can carry 10T~50T cargo
2. Omnidirectional walking, can complete various actions in a small space
3. Equipped with magnetic navigation landmarks for site docking
4. Safety protection is more in place, 270° obstacle avoidance security
5. Upgrade able dual-car and multi-vehicle linkage function
Product technical parameters | |
Dimensions (mm) | 7500*2000*750 |
Navigation type | 磁导航/激光导航 Magnetic navigation/laser navigation |
驱动方式 Drive mode | 舵轮 Steering wheel |
行进方向 Direction of travel | 前进/转弯/后退/平移/90°转弯/原地旋转 Forward/Turn/Back/translation / 90° turn/in situ rotation |
额定负载 specified load (kgs) | 10000~50000 |
运行速度Running speed (m/mins) | 6~36 |
供电方式 Power supply | 锂电池/铅酸电池 Lithium battery / lead acid battery |
充电方式 charging mode | 自动在线/手动离线 Automatic online/manual offline |
转弯半径(mm) Turning radius | 无 No have |
导引精度(mm) Guidance accuracy | ±10 |
停止精度(mm) Stop accuracy | ±10 |
操作方式 Operation method | 自动/手动遥控 Automatic/manual remote control |
